FOUNDATION

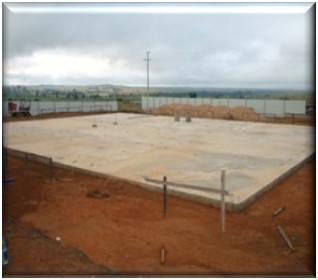

Generally, raft foundations are recommended although other methods may be used.
The "Robust Building System" is a walling system that is designed to build stronger structures of all types quickly, efficiently and cost effectively.
The “Robust Building System”, is a unique approved, durable, time saving and cost-effective building method to build sustainable structures that can withstand ‘forces of nature’ such as earthquakes, tornados, hurricanes, cyclones, floods, fires and termites.
The strength of a Robust wall is far superior than conventional walling systems due its high lateral and load bearing capabilities.
The Robust technology lends itself to be a much faster walling construction method in comparison to that of conventional systems and provides quicker turnaround times.
The Robust Core wall panels weigh 3,6kg/m² and provides for a lighter structure that makes handling of these panels very easy, creating a better labour throughput.
The Robust walls fit together as a single diaphragm structure without any joints and seams that can cause structural interference normally caused by soil movement such as earthquakes.
As with other innovative and/or alternative systems, Robust is not a modular system limited or restrained to a specific length or height.
Compared to other innovative, alternative and conventional building systems, the "Robust Building System" is more cost effective.
"The Robust Building System" has a proven track record and the system has been accredited and approved by various engineering and building councils, organisations and institutions worldwide.
Although the Robust walls are more durable and has higher performance values than other walling systems, it is still thinner and creates additional internal living space in all types of buildings.
The "Robust Building System" is a reinforced walling system that can be applied structurally by merely adjusting the wall thickness, steel and mortar requirements.
Robust wall panels create a backdrop for mortar to be mechanically applied. It creates an in-situ environment to build reinforced structural walls without having to use expensive shuttering or formwork.
Due to the system being lightweight and highly compact in its raw core form, 9,500m2 of wall core panels (34tons) fits onto a super link truck.
Effective Transport leads to a huge reduction in carbon emission and costs. Robust requires only 14% of transport in comparison with that of brick delivery statistics. 86% less in emission of fossil fuels.
Generally, raft foundations are recommended although other methods may be used.
Core is manufactured from mild steel coils. Robust core panels can be manufactured to any length up to 6,0m. The sheets measure 430mm in width with a weight of 3,6kg/m². Core panels are bound together and secured panels with drywall screws. Top and bottom U-Channel tracks are secured to the core panels with binding wire, Y-bars are applied to both sides of the panels.
Damp proof membrane is applied under all external walls. The assembled wall panels are erected and kept in place by means of Robust-jig supporting arms. The walls are then secured to the slab joined and squared. Any conventional roofing system can be utilised with the Robust wall. Beam filling is eliminated by recessing the trusses into the wall using truss brackets.
All electrical, water and plumbing required is easily installed in the W-shape (concertina) of the panel. After the windows and door frames are fitted, the walls are sprayed using a mortar/gunnite pump. The sprayed walls are then plastered and finished off to resemble a conventional wall.
Any door, window and roof type can be used with the "Robust Building System". The completed product is comparable with conventional plastered walls, and will look and feel exactly the same, except for the larger internal living area.
The walls are sprayed using a mortar/gunite pump.
A vertical binding jig is required in the assembly of wall panels.It can be assembled and disassembled for ease of transport.
The support arm is a jig to secure and keep wall panels upright and in place during the erection process.
A support arm consists of 3 pieces - A Top Arm Cap, Support Arm and Floor Securing Bracket. Support arms are removed after the installation of the roof trusses.
